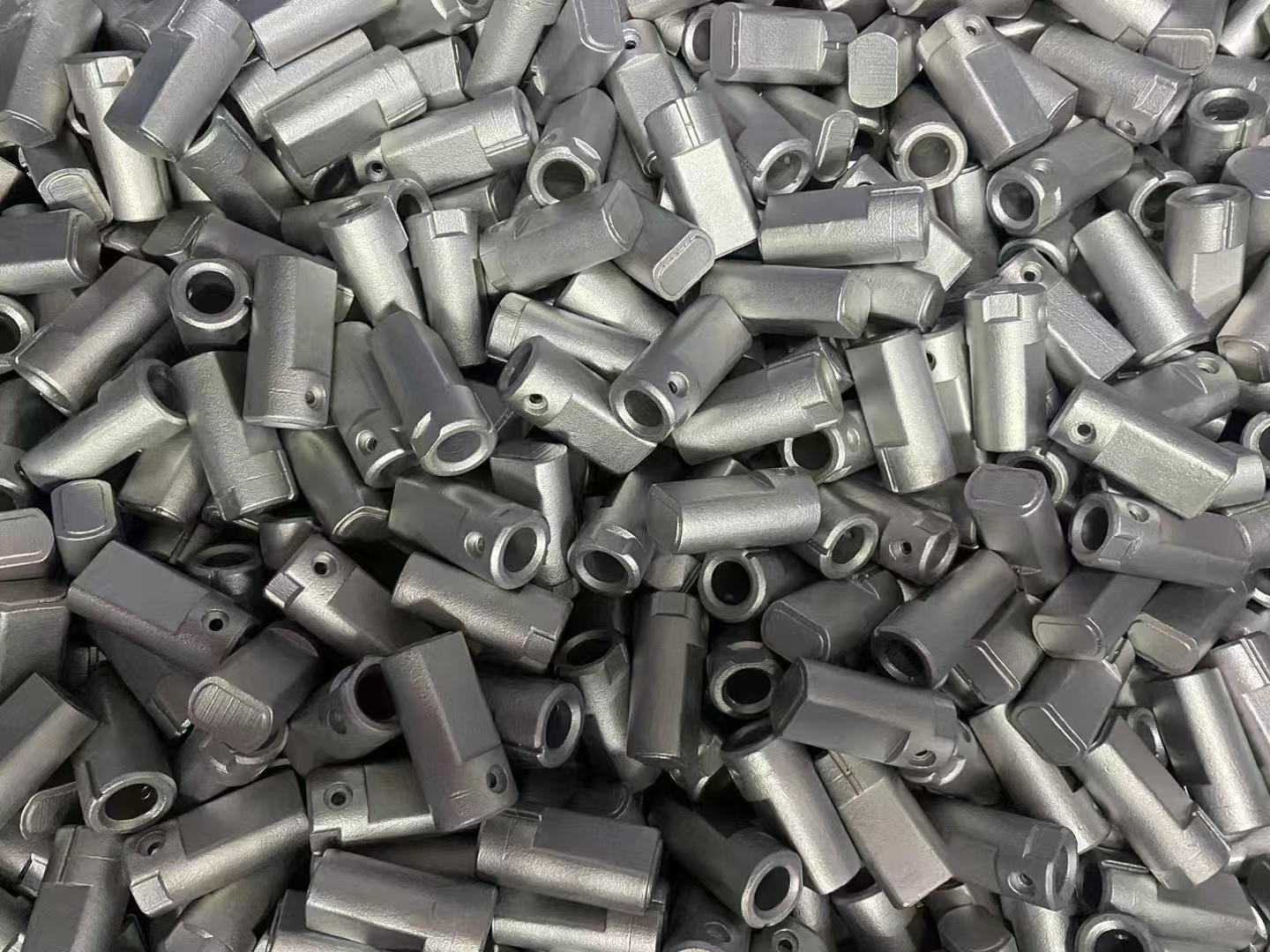

Dimensional accuracy is a critical quality factor in precision investment casting. It is not determined by a single process step, but by the combined control of part design, material selection, wax pattern production, shell preparation, and metal pouring conditions.
A clear understanding of shrinkage behavior throughout the entire process allows dimensional deviations to be effectively predicted, compensated, and controlled, ensuring consistent and reliable casting results.
The geometry and wall thickness of a casting directly influence shrinkage behavior. Thicker sections experience greater shrinkage, while thinner walls shrink less. Variations between free shrinkage and restrained shrinkage can lead to dimensional inconsistency, especially in complex or non-uniform designs. Proper structural evaluation during the design stage is essential for dimensional control.
Different alloys exhibit different linear shrinkage characteristics. In general, materials with higher carbon content have lower linear shrinkage, while lower carbon alloys tend to shrink more.
Casting shrinkage is commonly calculated as:
K = (LM − LJ) / LJ × 100%
where LM represents the mold cavity dimension and LJ represents the final casting dimension. Shrinkage behavior is influenced not only by alloy composition, but also by casting structure, wax pattern characteristics, and pouring temperature.
Wax pattern production plays a decisive role in dimensional accuracy. Wax injection temperature and pressure have the greatest impact on pattern dimensions, while holding time has a limited effect once proper filling is achieved.
Typical wax material linear shrinkage ranges from 0.9% to 1.1%. Additional shrinkage occurs during pattern storage, accounting for approximately 10% of total shrinkage. Dimensional stability is generally achieved after 12 hours. Excessively high wax temperatures increase shrinkage, making precise temperature control essential.
High-quality refractory materials such as zircon sand and zircon powder are used due to their extremely low thermal expansion coefficients. Their influence on casting dimensions is minimal and can generally be neglected.
Similarly, shell expansion during firing remains very small. Even at firing temperatures around 1150°C, expansion is typically below 0.053%, ensuring dimensional stability throughout the shell preparation process.
Pouring temperature directly affects metal shrinkage. Higher temperatures increase shrinkage, while excessively low temperatures may negatively impact mold filling. Optimal pouring temperature selection is therefore critical to balancing dimensional accuracy and casting integrity.
Precision investment casting offers significant advantages over conventional manufacturing processes:
Excellent surface finish, reducing or eliminating secondary machining
Near-net-shape capability for complex geometries
Tight dimensional tolerances
Competitive tooling costs
Reliable thin-wall casting performance
High consistency with low defect rates
Precision investment castings are widely used across industries including electronics, energy, petroleum, chemical processing, transportation, medical equipment, and pump and valve manufacturing.
Materials commonly produced include copper and copper alloys, and a wide range of carbon and alloy steel castings.
